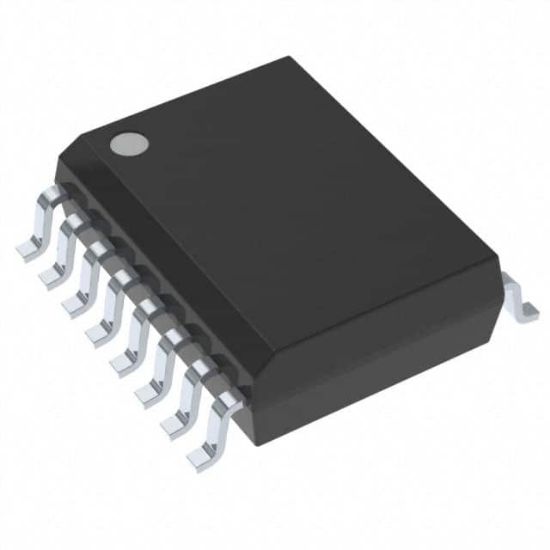

ISO7731DW

DGTL ISO 5000VRMS 3CH GP 16SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: ISO7731DW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ISO7731DW Description

Voltage - Supply	2.25V ~ 5.5V
Rise / Fall Time (Typ)	1.3ns, 1.4ns
Common Mode Transient Immunity (Min)	40kV/μs
Propagation Delay tpLH / tpHL (Max)	16ns, 16ns
Data Rate	100Mbps
Technology	Capacitive Coupling
Isolated Power	No
Number of Channels	3
Pulse Width Distortion (Max)	4.9ns
Package	Bulk,Tube
Channel Type	Unidirectional
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	2/1
Type	General Purpose
Supplier Device Package	16-SOIC
Operating Temperature	-55°C ~ 125°C
Voltage - Isolation	5000Vrms
RoHS	RoHS
