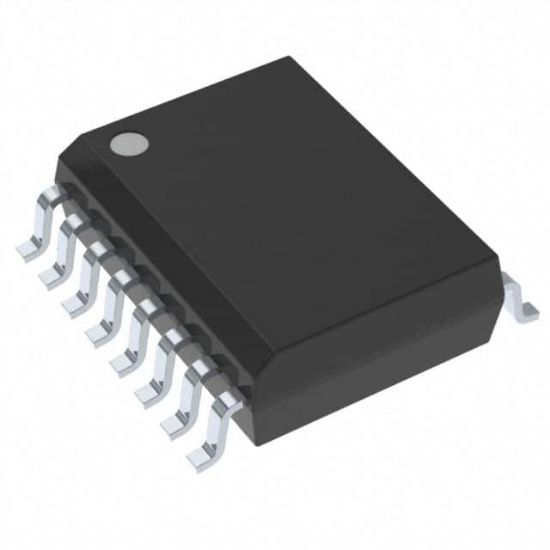

ISO5500DW

DGTL ISO 4.243KV GATE DVR 16SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: ISO5500DW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ISO5500DW Description

Operating Temperature	-40°C ~ 125°C
Rise / Fall Time (Typ)	55ns, 10ns
Voltage - Output Supply	15V ~ 30V
Mounting Type	Surface Mount
Technology	Capacitive Coupling
Common Mode Transient Immunity (Min)	25kV/μs
Number of Channels	1
Pulse Width Distortion (Max)	-
Package	Bulk,Tube
Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	-
Approval Agency	CSA, UL, VDE
Propagation Delay tpLH / tpHL (Max)	300ns, 300ns
Supplier Device Package	16-SOIC
Current - DC Forward (If) (Max)	-
Voltage - Isolation	4243Vrms
RoHS	RoHS
Current - Output High, Low	2.5A, 2.5A
