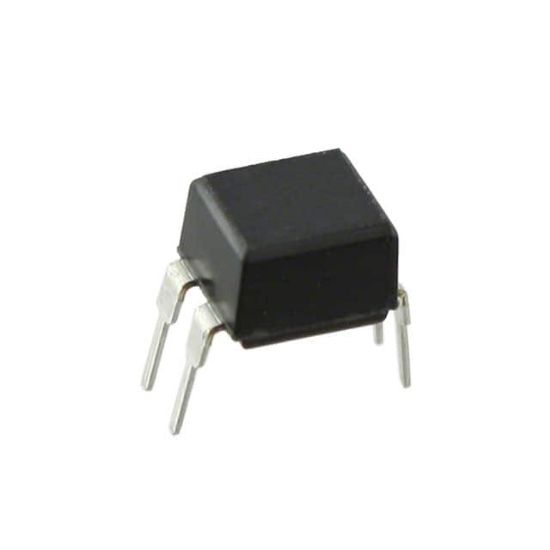

IRLD014

MOSFET N-CH 60V 1.7A 4DIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Siliconix

SKU: IRLD014

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRLD014 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Rds On (Max) @ Id, Vgs	200mOhm @ 1A, 5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4V, 5V
Package	Tube
Power Dissipation (Max)	1.3W (Ta)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±10V
Vgs(th) (Max) @ Id	2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	8.4 nC @ 5 V
Supplier Device Package	4-HVMDIP
Input Capacitance (Ciss) (Max) @ Vds	400 pF @ 25 V
RoHS	RoHS
