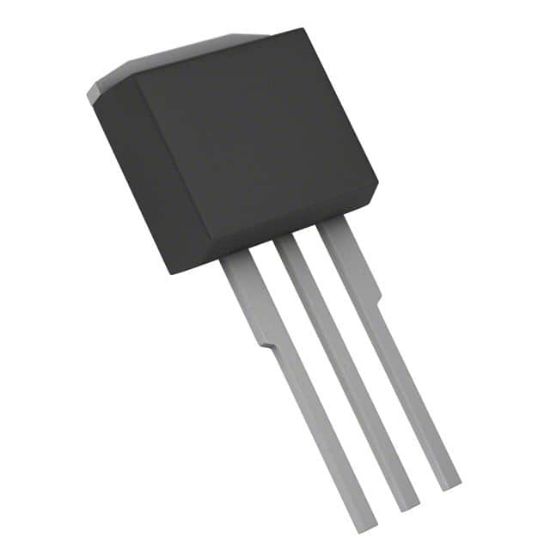

IRF1503LPBF

MOSFET N-CH 30V 75A TO262

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IRF1503LPBF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IRF1503LPBF Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Rds On (Max) @ Id, Vgs	3.3mOhm @ 140A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	200W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	200 nC @ 10 V
Supplier Device Package	TO-262
Input Capacitance (Ciss) (Max) @ Vds	5730 pF @ 25 V
RoHS	RoHS
