IPP12CN10LGXKSA1

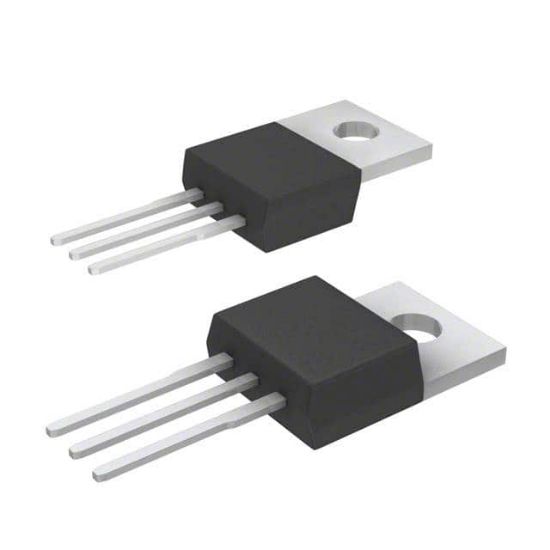

MOSFET N-CH 100V 69A TO220-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: IPP12CN10LGXKSA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IPP12CN10LGXKSA1 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	69A (Tc)
Rds On (Max) @ Id, Vgs	12mOhm @ 69A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tube
Power Dissipation (Max)	125W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.4V @ 83μA
Gate Charge (Qg) (Max) @ Vgs	58 nC @ 10 V
Supplier Device Package	PG-TO220-3
Input Capacitance (Ciss) (Max) @ Vds	5600 pF @ 50 V
RoHS	RoHS
