IPB80N04S3-04

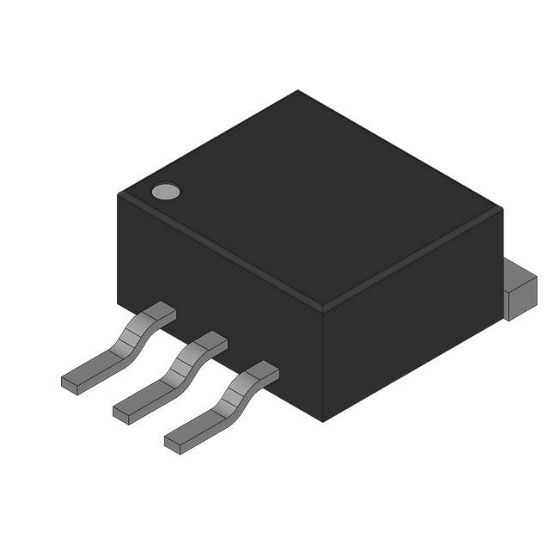

MOSFET N-CH 40V 80A TO263-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IPB80N04S3-04

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IPB80N04S3-04 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
3N0404	IPB80N04S3-04	INFINEON	PG-TO263-3-2	3	N-Channel 40V MOSFETs

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Rds On (Max) @ Id, Vgs	4.1mOhm @ 80A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	-
Package	Bulk
Power Dissipation (Max)	136W (Tc)
Drain to Source Voltage (Vdss)	40 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 90μA
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V
Supplier Device Package	PG-TO263-3-1
Input Capacitance (Ciss) (Max) @ Vds	5200 pF @ 25 V
RoHS	RoHS
