IPA60R380E6XKSA1

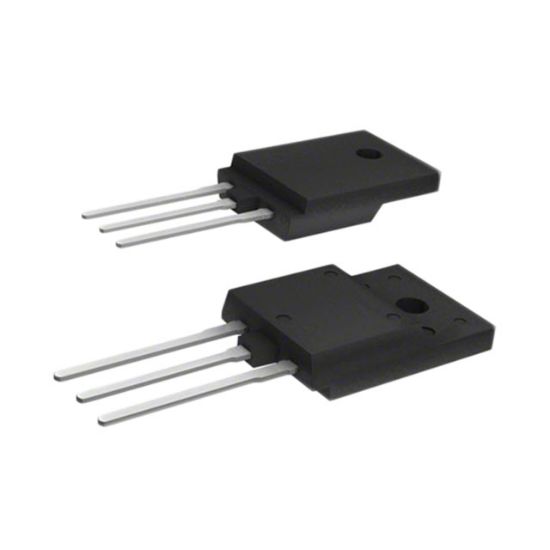

MOSFET N-CH 600V 10.6A TO220-FP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IPA60R380E6XKSA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IPA60R380E6XKSA1 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	10.6A (Tc)
Rds On (Max) @ Id, Vgs	380mOhm @ 3.8A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Bulk,Tube
Power Dissipation (Max)	31W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3.5V @ 320μA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 10 V
Supplier Device Package	PG-TO220-FP
Input Capacitance (Ciss) (Max) @ Vds	700 pF @ 100 V
RoHS	RoHS
