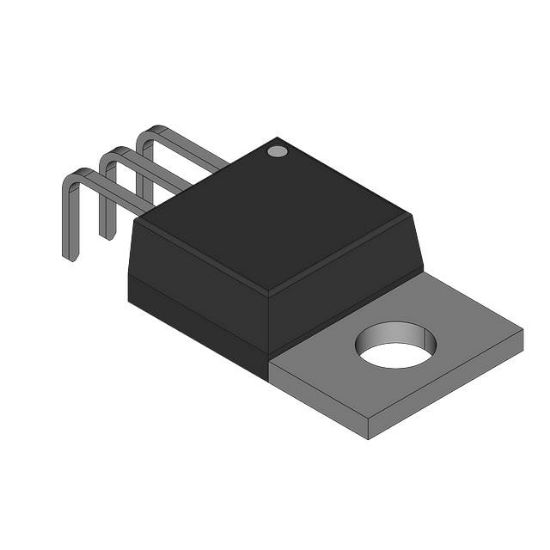

IKP03N120H2

IGBT, 9.6A, 1200V, N-CHANNEL

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IKP03N120H2

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IKP03N120H2 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
K03H1202	IKP03N120H2	INFINEON	PG-TO-220-3-1	3	HighSpeed 2-Technology with soft, fast recovery anti-parallel Emitter Controlled HE diode

Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	9.6 A
Supplier Device Package	PG-TO220-3-1
Gate Charge	22 nC
Voltage - Collector Emitter Breakdown (Max)	1200 V
Power - Max	62.5 W
IGBT Type	-
Package	Bulk
Current - Collector Pulsed (Icm)	9.9 A
Td (on/off) @ 25°C	9.2ns/281ns
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 3A
Test Condition	800V, 3A, 82Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	42 ns
Switching Energy	290μJ
RoHS	RoHS
