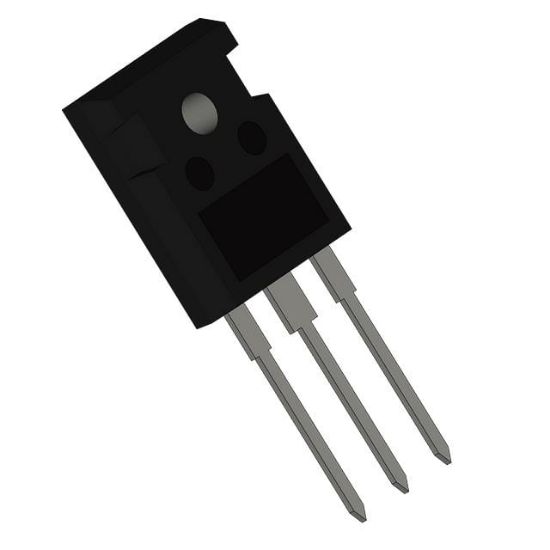

IDWD15G120C5XKSA1-6189626

IDWD15G120C5 - 1200V SILICION CA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: IDWD15G120C5XKSA1-6189626

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

IDWD15G120C5XKSA1-6189626 Description

Capacitance @ Vr, F	1050pF @ 1V, 1MHz
Mounting Type	Through Hole
Supplier Device Package	PG-TO247-2
Diode Type	Silicon Carbide Schottky
Operating Temperature - Junction	-55°C ~ 175°C
Package	Bulk
Voltage - Forward (Vf) (Max) @ If	1.65 V @ 15 A
Current - Reverse Leakage @ Vr	124 μA @ 1200 V
Reverse Recovery Time (trr)	0 ns
Voltage - DC Reverse (Vr) (Max)	1200 V
Current - Average Rectified (Io)	49A (DC)
RoHS	RoHS
Speed	No Recovery Time > 500mA (Io)
