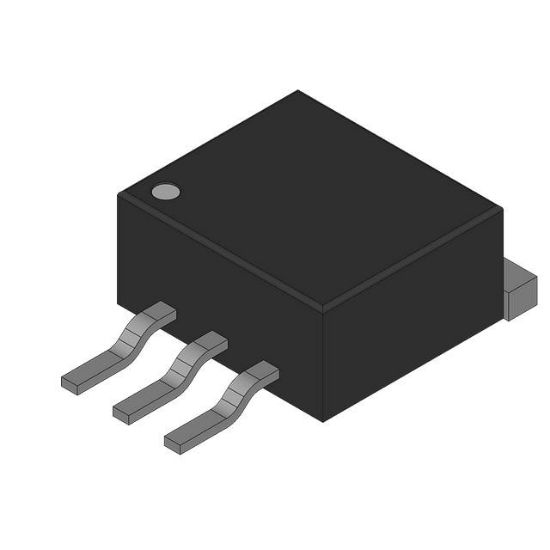

HUF76423D3S-6324680

MOSFET N-CH 60V 20A TO252AA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: HUF76423D3S-6324680

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HUF76423D3S-6324680 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	32mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tube
Power Dissipation (Max)	85W (Tc)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±16V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	34 nC @ 10 V
Supplier Device Package	TO-252, (D-Pak)
Input Capacitance (Ciss) (Max) @ Vds	1060 pF @ 25 V
RoHS	RoHS
