HUF75639G3-6359912

N-CHANNEL ULTRAFET POWER MOSFET

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: HUF75639G3-6359912

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HUF75639G3-6359912 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	56A (Tc)
Rds On (Max) @ Id, Vgs	25mOhm @ 56A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Bulk
Power Dissipation (Max)	200W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 20 V

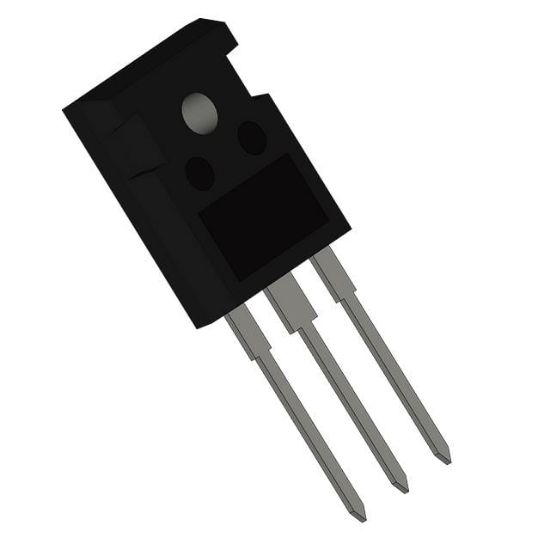

Supplier Device Package	TO-247
Input Capacitance (Ciss) (Max) @ Vds	2000 pF @ 25 V
RoHS	RoHS
