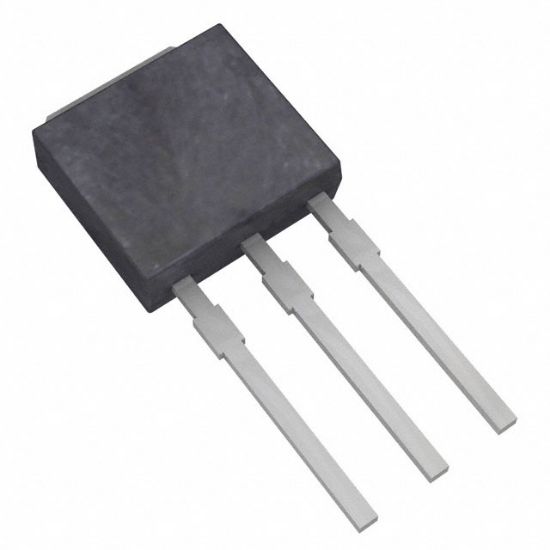

HUF75307D3-6344947

MOSFET N-CH 55V 15A IPAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: HUF75307D3-6344947

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HUF75307D3-6344947 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Rds On (Max) @ Id, Vgs	90mOhm @ 15A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	45W (Tc)
Drain to Source Voltage (Vdss)	55 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 20 V
Supplier Device Package	I-PAK
Input Capacitance (Ciss) (Max) @ Vds	250 pF @ 25 V
RoHS	RoHS
