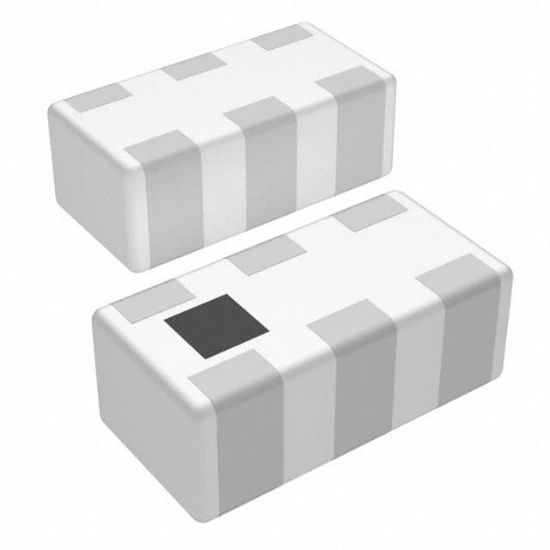

HHM17166A1

BALUN 1.9GHZ-2.3GHZ 50/50 0603

1 review(s) | Add your review

Availability: In stock

Manufacturer: TDK Corporation

SKU: HHM17166A1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

HHM17166A1 Description

Phase Difference	178°
Return Loss (Min)	-10.3dB
RoHS	RoHS
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Impedance - Unbalanced/Balanced	50 / 50Ohm
Insertion Loss (Max)	1.5dB
Mounting Type	Surface Mount
Frequency Range	1.9GHz ~ 2.3GHz
