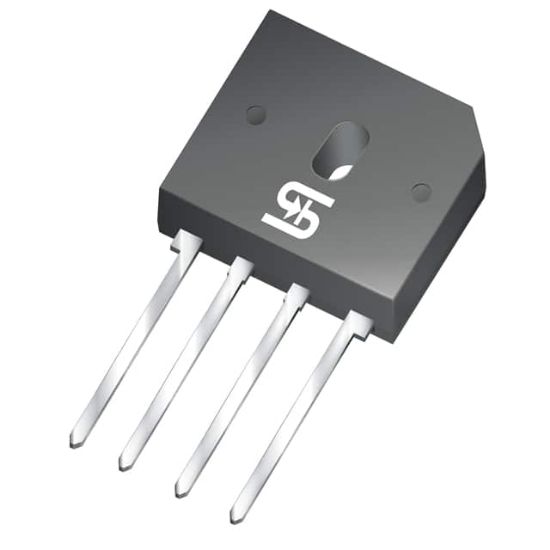

GBU1506

15A, 800V, STANDARD BRIDGE RECTI

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: GBU1506

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

GBU1506 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 15 A
Current - Average Rectified (Io)	15 A
RoHS	RoHS
Voltage - Peak Reverse (Max)	800 V
Current - Reverse Leakage @ Vr	5 μA @ 800 V
Supplier Device Package	GBU
Package	Tube
Diode Type	Single Phase
Mounting Type	Through Hole
Technology	Standard
