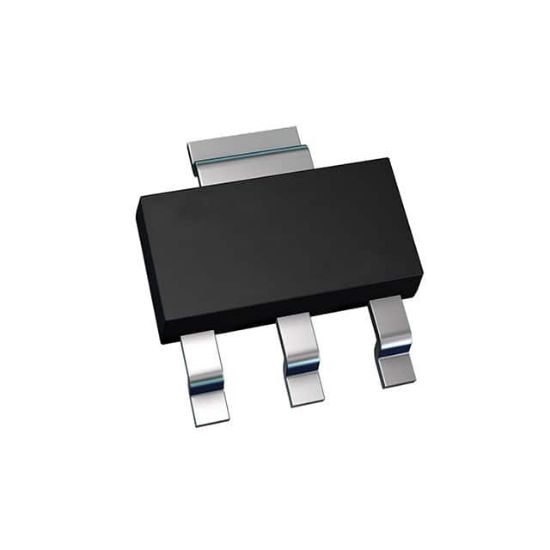

FZT692BTC

TRANS NPN 70V 2A SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: FZT692BTC

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FZT692BTC Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 200mA, 2A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	2 A
Supplier Device Package	SOT-223-3
Current - Collector Cutoff (Max)	100nA
Voltage - Collector Emitter Breakdown (Max)	70 V
Power - Max	2 W
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 1A, 2V
Frequency - Transition	150MHz
RoHS	RoHS
Transistor Type	NPN
