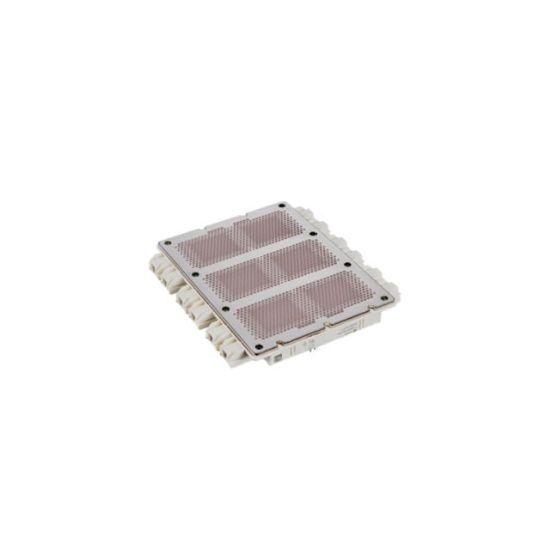

FS500R17OE4DPBOSA1

IGBT MOD 1700V 1000A 20MW

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: FS500R17OE4DPBOSA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FS500R17OE4DPBOSA1 Description

Operating Temperature	-40°C ~ 150°C
Input	Standard
Input Capacitance (Cies) @ Vce	40 nF @ 25 V
Mounting Type	Chassis Mount
Current - Collector (Ic) (Max)	1000 A
Supplier Device Package	Module
NTC Thermistor	Yes
Voltage - Collector Emitter Breakdown (Max)	1700 V
Power - Max	20 mW
IGBT Type	Trench Field Stop
Package	Tray
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 500A
Configuration	Full Bridge
RoHS	RoHS
Current - Collector Cutoff (Max)	3 mA
