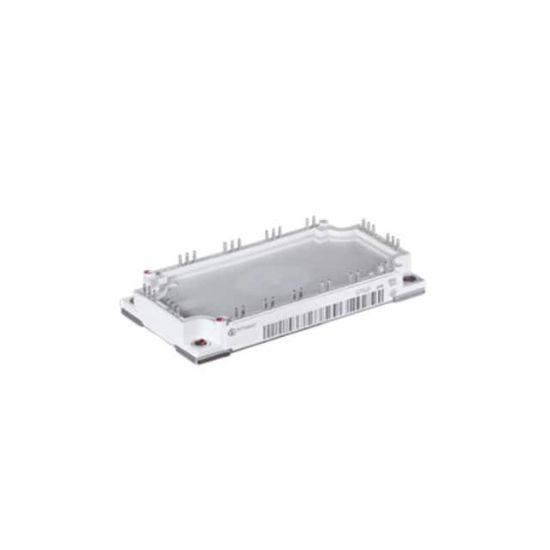

FS100R12KT3BOSA1

IGBT MOD 1200V 140A 480W

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: FS100R12KT3BOSA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FS100R12KT3BOSA1 Description

Operating Temperature	-40°C ~ 125°C
Input	Standard
Input Capacitance (Cies) @ Vce	7.1 nF @ 25 V
Mounting Type	Chassis Mount
Current - Collector (Ic) (Max)	140 A
Supplier Device Package	Module
NTC Thermistor	Yes
Voltage - Collector Emitter Breakdown (Max)	1200 V
Power - Max	480 W
IGBT Type	Trench Field Stop
Package	Bulk
Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 100A
Configuration	Three Phase Inverter
RoHS	RoHS
Current - Collector Cutoff (Max)	5 mA
