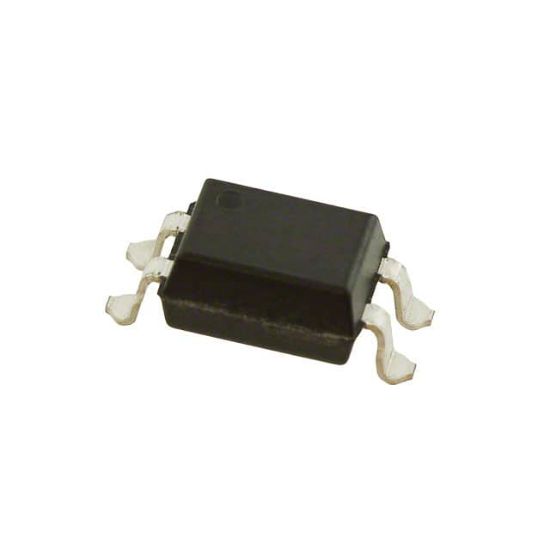

FOD817C3SD

OPTOISOLATOR 5KV TRANSISTOR 4SMD

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FOD817C3SD

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FOD817C3SD Description

Operating Temperature	-55°C ~ 110°C
Rise / Fall Time (Typ)	4μs, 3μs
Mounting Type	Surface Mount
Supplier Device Package	4-SMD
Current Transfer Ratio (Max)	400% @ 5mA
Vce Saturation (Max)	200mV
Number of Channels	1
Voltage - Output (Max)	70V
Turn On / Turn Off Time (Typ)	-
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current Transfer Ratio (Min)	200% @ 5mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - Output / Channel	50mA
Input Type	DC
Current - DC Forward (If) (Max)	50 mA
Voltage - Isolation	5000Vrms
RoHS	RoHS
Output Type	Transistor
