FGP5N60UFDTU

IGBT 600V 10A 81W TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FGP5N60UFDTU

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FGP5N60UFDTU Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	10 A

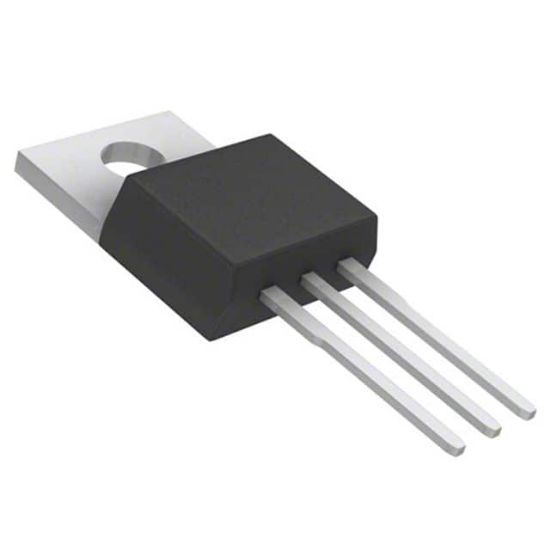

Supplier Device Package	TO-220-3
Gate Charge	19.5 nC
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	81 W
IGBT Type	Field Stop
Package	Tube
Current - Collector Pulsed (Icm)	15 A
Td (on/off) @ 25°C	6ns/44ns
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 5A
Test Condition	400V, 5A, 20Ohm, 15V
Input Type	Standard
Reverse Recovery Time (trr)	30 ns
Switching Energy	75μJ (on), 59μJ (off)
RoHS	RoHS
