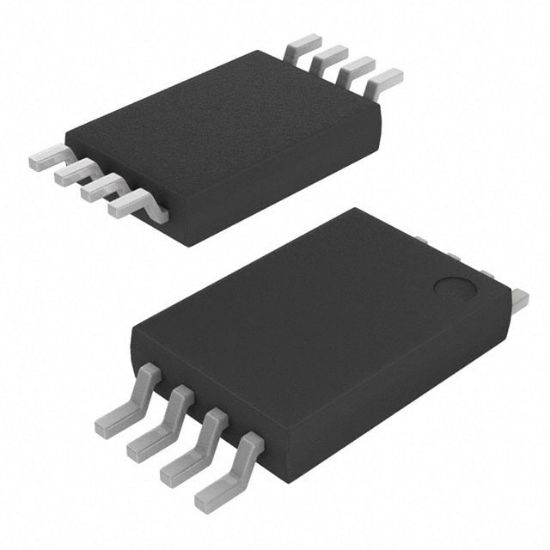

FDW254P

MOSFET P-CH 20V 9.2A 8TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDW254P

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDW254P Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
254P	FDW254P		TSSOP-8	0	P-Channel 1.8V Specified PowerTrench MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	9.2A (Ta)
Rds On (Max) @ Id, Vgs	12mOhm @ 9.2A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Package	Tape & Reel (TR)
Power Dissipation (Max)	1.3W (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	1.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	96 nC @ 4.5 V
Supplier Device Package	8-TSSOP
Input Capacitance (Ciss) (Max) @ Vds	5878 pF @ 10 V
RoHS	RoHS
