FDW2516NZ-6319437

MOSFET 2N-CH 20V 5.8A 8TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDW2516NZ-6319437

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDW2516NZ-6319437 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount

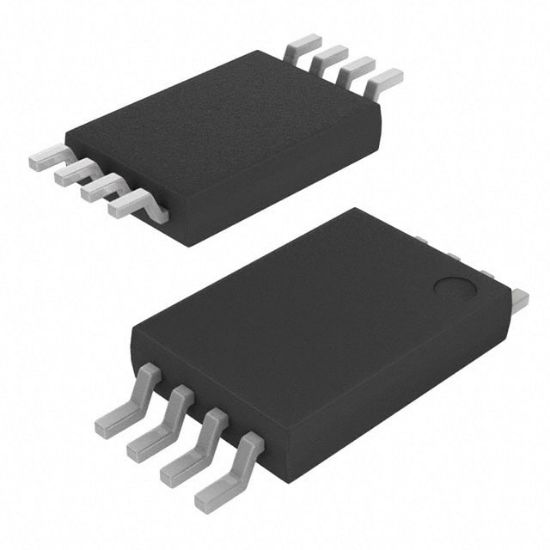

Supplier Device Package	8-TSSOP
Current - Continuous Drain (Id) @ 25°C	5.8A
Rds On (Max) @ Id, Vgs	30mOhm @ 5.8A, 4.5V
FET Type	2 N-Channel (Dual)
Power - Max	1.1W
Package	Tape & Reel (TR)
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	1.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	745pF @ 10V
RoHS	RoHS
