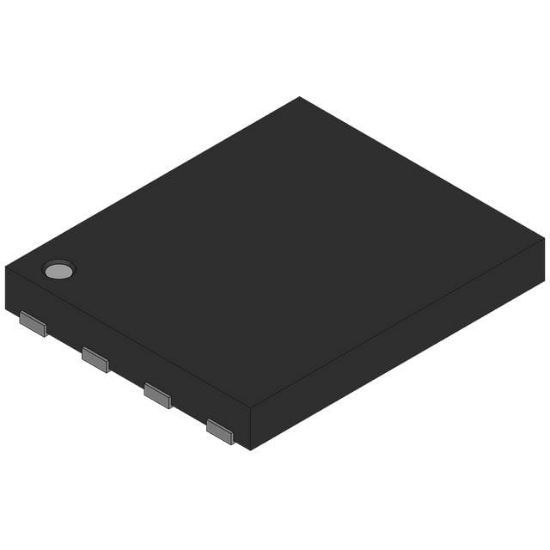

FDMS3624S-6316929

SMALL SIGNAL FIELD-EFFECT TRANSI

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: FDMS3624S-6316929

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDMS3624S-6316929 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Current - Continuous Drain (Id) @ 25°C	17.5A (Ta), 30A (Tc), 30A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs	1.8mOhm @ 30A, 10V, 5mOhm @ 17.5A, 10V
FET Type	2 N-Channel (Dual) Asymmetrical
Power - Max	2.2W (Ta), 2.5W (Ta)
Package	Bulk
Drain to Source Voltage (Vdss)	25V
Vgs(th) (Max) @ Id	2V @ 250μA, 2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	26nC @ 10V, 59nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1570pF @13V, 4045pF @ 13V
RoHS	RoHS
