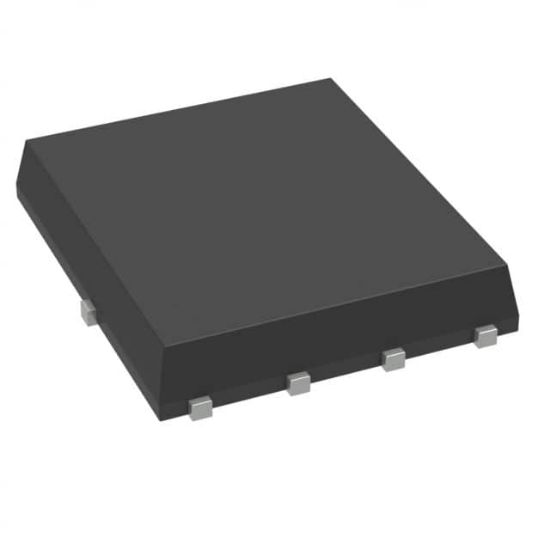

FDMS0308AS

MOSFET N-CH 30V 24A/49A 8PQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDMS0308AS

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDMS0308AS Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 49A (Tc)
Rds On (Max) @ Id, Vgs	2.8mOhm @ 24A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.5W (Ta), 50W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 10 V
Supplier Device Package	8-PQFN (5x6)
Input Capacitance (Ciss) (Max) @ Vds	3000 pF @ 15 V
RoHS	RoHS
