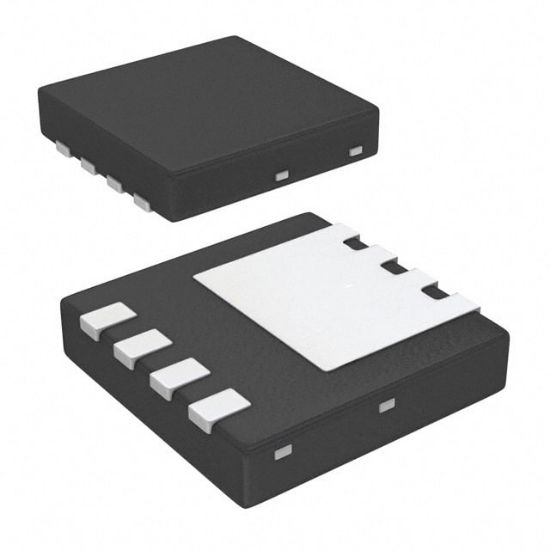

FDMC8321L

MOSFET N-CH 40V 22A/49A POWER33

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDMC8321L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDMC8321L Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 49A (Tc)
Rds On (Max) @ Id, Vgs	2.5mOhm @ 22A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.3W (Ta), 40W (Tc)
Drain to Source Voltage (Vdss)	40 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	61 nC @ 10 V
Supplier Device Package	Power33
Input Capacitance (Ciss) (Max) @ Vds	3900 pF @ 20 V
RoHS	RoHS
