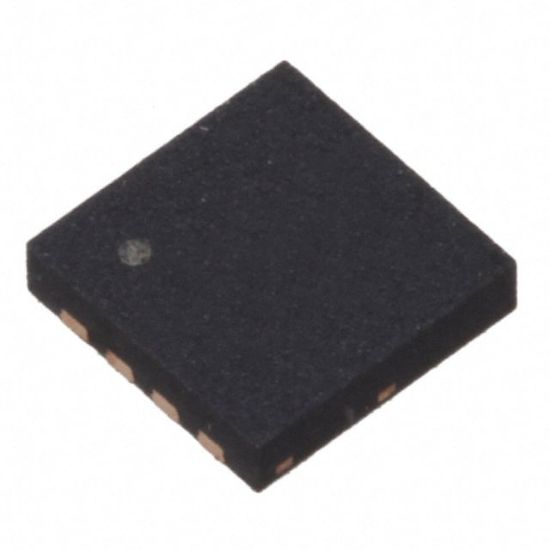

FDMC5614P

MOSFET P-CH 60V 5.7A/13.5A 8MLP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: FDMC5614P

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FDMC5614P Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
5614P	FDMC5614P	Fairchild	Power33-8	8	-60V P沟道PowerTrench? MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	5.7A (Ta), 13.5A (Tc)
Rds On (Max) @ Id, Vgs	100mOhm @ 5.7A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.1W (Ta), 42W (Tc)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 10 V
Supplier Device Package	8-MLP (3.3x3.3)
Input Capacitance (Ciss) (Max) @ Vds	1055 pF @ 30 V
RoHS	RoHS
