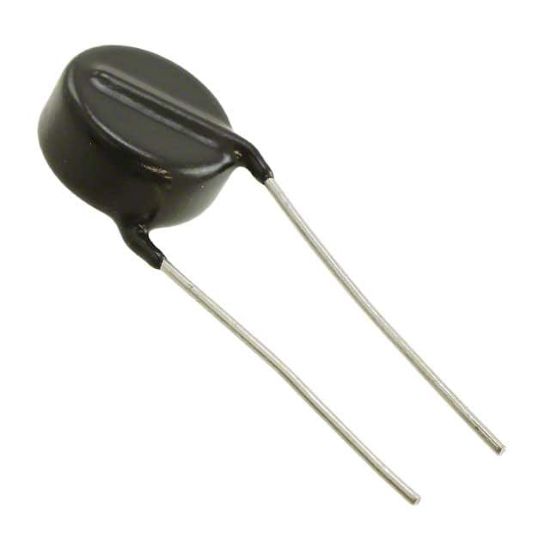

ERZ-E14A112

VARISTOR 1.1KV 7.5KA DISC 16.5MM

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: ERZ-E14A112

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ERZ-E14A112 Description

Panasonic Electronic Components ERZ-E ZNR? Transient/Surge Absorbers (MOVs)

Panasonic ERZ-E Series ZNR? Transient/Surge Absorber product line (Metal Oxide Varistors) consists of devices used to protect electronic equipment against voltage surges and save board space and cost. The ERZ-E Series ZNR Transient/Surge Absorbers include smaller sizes 5mm (ERZ-E5), 7mm (ERZ-E7), 8mm (ERZ-E8), 11mm (ERZ-E11), and 14mm (ERZ-E14) that deliver the same outstanding ZNR performance as their larger 20mm counterparts. Features of ERZ-E14 Series ZNR Transient/Surge Absorbers include exceptional ability to withstand surge current in a compact size, energy handling capability, voltage range from 200V to 1100V, compliance to UL and VDE standards, and RoHS compliance. The ERZ-E14 Series is also a drop-in replacement for Panasonic's ERZ-V20Dxx series parts.?Applications for the ERZ-E Series include lighting control, smart meters, solar inverters, appliances, consumer electronics, and communication equipment.

Operating Temperature	-40°C ~ 85°C (TA)
Maximum DC Volts	895 V
Varistor Voltage (Max)	1.21 kV
Energy	620J
Mounting Type	Through Hole
Capacitance @ Frequency	350 pF @ 1 kHz
Maximum AC Volts	680 V
Number of Circuits	1
Package	Bulk
Current - Surge	7.5 kA
Features	-
Varistor Voltage (Typ)	1.1 kV
RoHS	RoHS
Varistor Voltage (Min)	990 V
