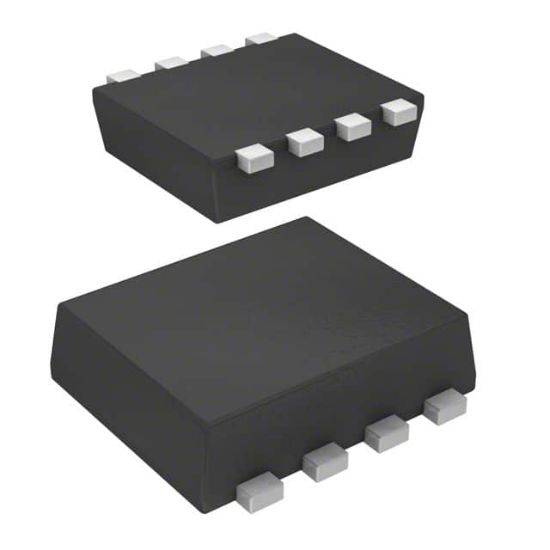

ECH8320-TL-H-6350266

MOSFET P-CH 20V 9.5A 8ECH

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: ECH8320-TL-H-6350266

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ECH8320-TL-H-6350266 Description

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	9.5A (Ta)
Rds On (Max) @ Id, Vgs	14.5mOhm @ 5A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Package	Tape & Reel (TR),Bulk
Power Dissipation (Max)	1.6W (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V
Supplier Device Package	8-ECH
Input Capacitance (Ciss) (Max) @ Vds	2300 pF @ 10 V
RoHS	RoHS
