DZ23C13-7

DIODE ZENER ARRAY 13V SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: DZ23C13-7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DZ23C13-7 Description

Impedance (Max) (Zzt)	25 Ohms
Power - Max	300 mW
Voltage - Forward (Vf) (Max) @ If	-
Operating Temperature	-65°C ~ 150°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	-
Mounting Type	Surface Mount

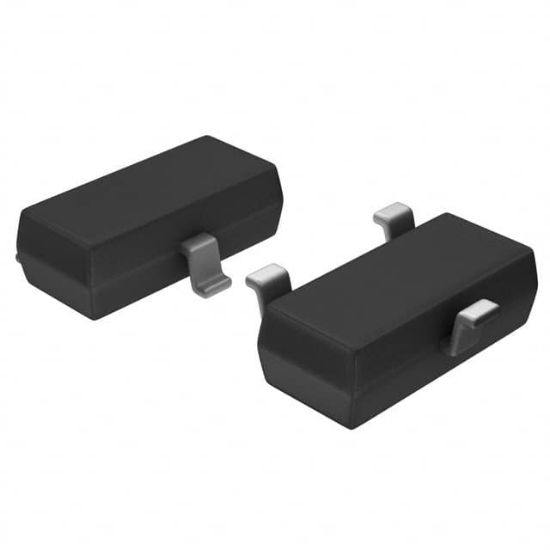

Supplier Device Package	SOT-23-3
Package	Tape & Reel (TR),Cut Tape (CT)
Configuration	1 Pair Common Cathode
Voltage - Zener (Nom) (Vz)	13 V
Tolerance	±5%
