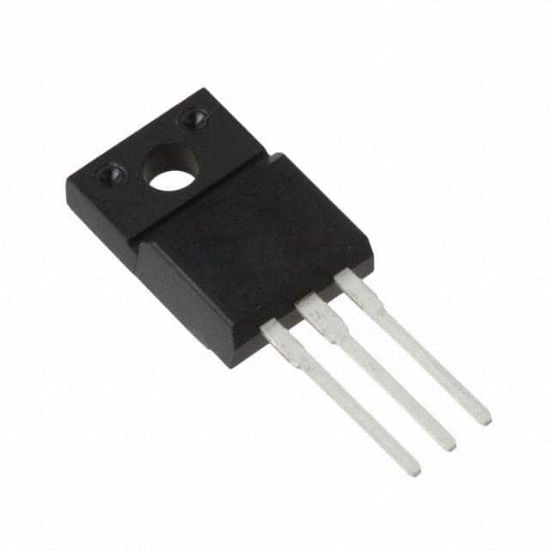

DSA20C100PN

DIODE ARRAY SCHOTTKY 100V TO220F

1 review(s) | Add your review

Availability: In stock

Manufacturer: IXYS

SKU: DSA20C100PN

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DSA20C100PN Description

Current - Average Rectified (Io) (per Diode)	10A
Mounting Type	Through Hole
Supplier Device Package	TO-220ABFP
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 175°C
Package	Tube
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 A
Current - Reverse Leakage @ Vr	200 nA @ 100 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	100 V
Diode Configuration	1 Pair Common Cathode
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
