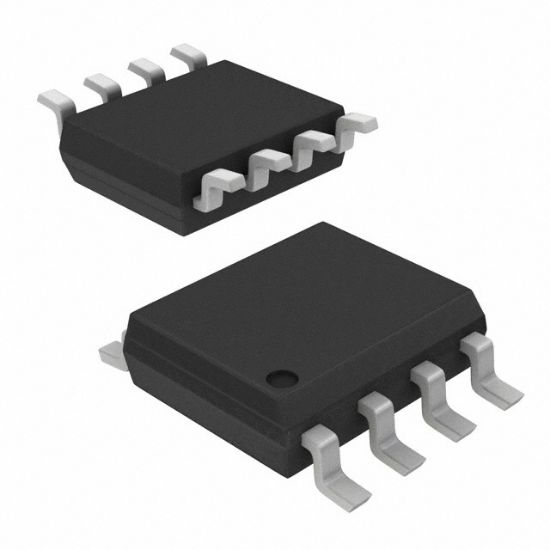

DMP3056LSDQ-13

MOSFETDUAL P-CHAN 30V SO-8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: DMP3056LSDQ-13

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DMP3056LSDQ-13 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	8-SO
Current - Continuous Drain (Id) @ 25°C	6.9A (Ta)
Rds On (Max) @ Id, Vgs	45mOhm @ 6A, 10V
FET Type	2 P-Channel (Dual)
Power - Max	2.5W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	30V
Vgs(th) (Max) @ Id	2.1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	13.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	722pF @ 25V
RoHS	RoHS
