DMP2109UVT-13

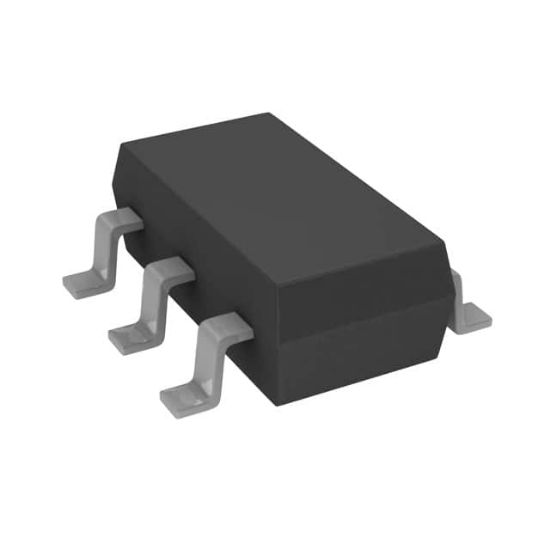

MOSFET P-CH 20V 3.7A TSOT26

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: DMP2109UVT-13

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DMP2109UVT-13 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	3.7A (Ta)
Rds On (Max) @ Id, Vgs	80mOhm @ 2.8A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Package	Tape & Reel (TR)
Power Dissipation (Max)	1.2W (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±10V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 4.5 V
Supplier Device Package	TSOT-23
Input Capacitance (Ciss) (Max) @ Vds	443 pF @ 10 V
RoHS	RoHS
