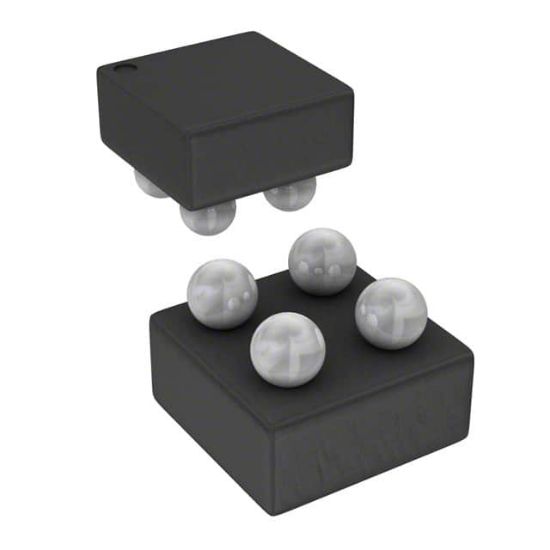

DMP1100UCB4-7

MOSFET P-CH 12V 2.5A WLB0808

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: DMP1100UCB4-7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DMP1100UCB4-7 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Rds On (Max) @ Id, Vgs	83mOhm @ 3A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	1.3V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	670mW (Ta)
Drain to Source Voltage (Vdss)	12 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	800mV @ 250μA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 4.5 V
Supplier Device Package	X2-WLB0808-4
Input Capacitance (Ciss) (Max) @ Vds	820 pF @ 6 V
RoHS	RoHS
