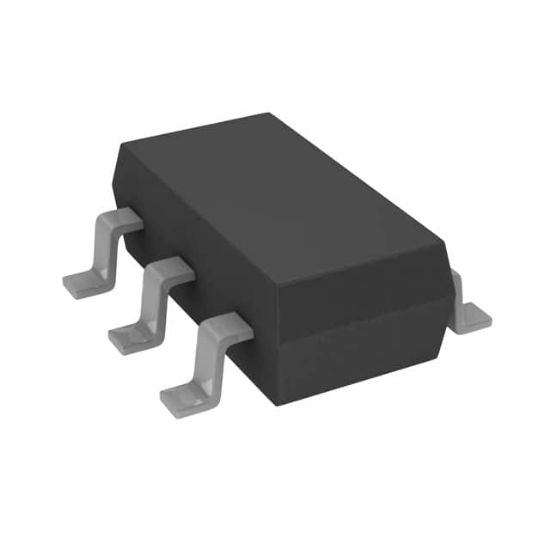

DMN2029UVT-13

MOSFET N-CH 6.8A TSOT26

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: DMN2029UVT-13

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DMN2029UVT-13 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	-
Current - Continuous Drain (Id) @ 25°C	6.8A (Ta)
Rds On (Max) @ Id, Vgs	24mOhm @ 6.2A, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	-
Package	Tape & Reel (TR)
Power Dissipation (Max)	-
Drain to Source Voltage (Vdss)	-
Vgs (Max)	-
Vgs(th) (Max) @ Id	1.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	-
Supplier Device Package	TSOT-23
Input Capacitance (Ciss) (Max) @ Vds	-
RoHS	RoHS
