DG2538DQ-T1-GE3

IC SWITCH SPST 4.5 OHM 10MSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Siliconix

SKU: DG2538DQ-T1-GE3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DG2538DQ-T1-GE3 Description

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	8pF, 9pF
On-State Resistance (Max)	4.5Ohm
Mounting Type	Surface Mount

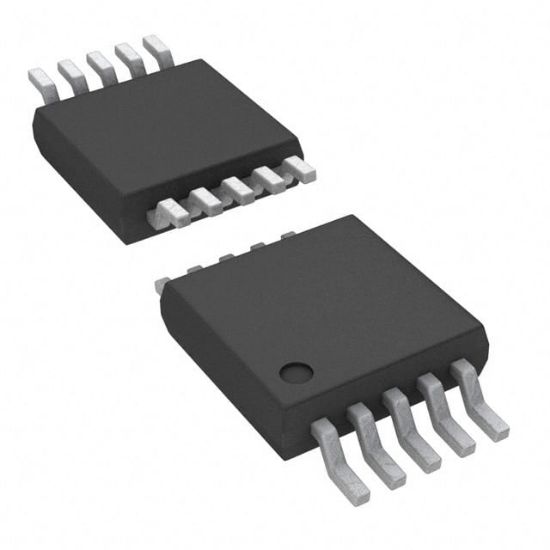

Supplier Device Package	10-MSOP
Switch Circuit	SPST - NC
Voltage - Supply, Dual (V±)	±2.5V
Number of Circuits	2
Package	Tape & Reel (TR)
Charge Injection	2.2pC
Switch Time (Ton, Toff) (Max)	30ns, 35ns
Voltage - Supply, Single (V+)	2.6V ~ 4.3V
Crosstalk	-90dB @ 1MHz
Multiplexer/Demultiplexer Circuit	1:1
Channel-to-Channel Matching (ΔRon)	200mOhm
-3db Bandwidth	366MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	250pA
