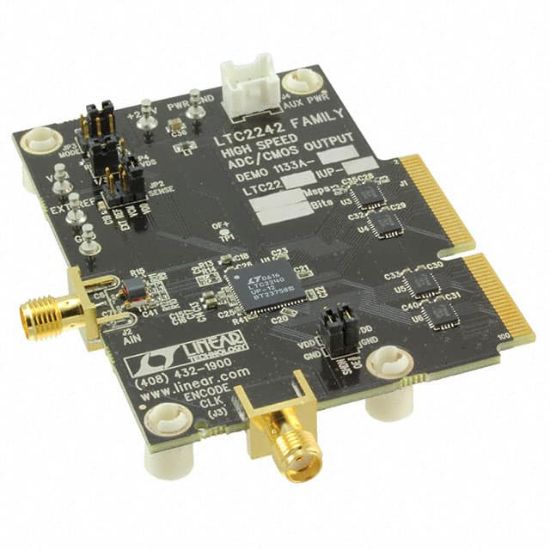

DC1133A-C

EVAL BOARD FOR LTC2240-12

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: DC1133A-C

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DC1133A-C Description

Data Interface	CMOS, LVDS, Parallel
Supplied Contents	Board(s)
Number of Bits	12
RoHS	RoHS
Utilized IC / Part	LTC2240-12
Power (Typ) @ Conditions	570mW @ 170MSPS
Sampling Rate (Per Second)	170M
Package	Box
Input Range	2Vpp
Number of A/D Converters	1
