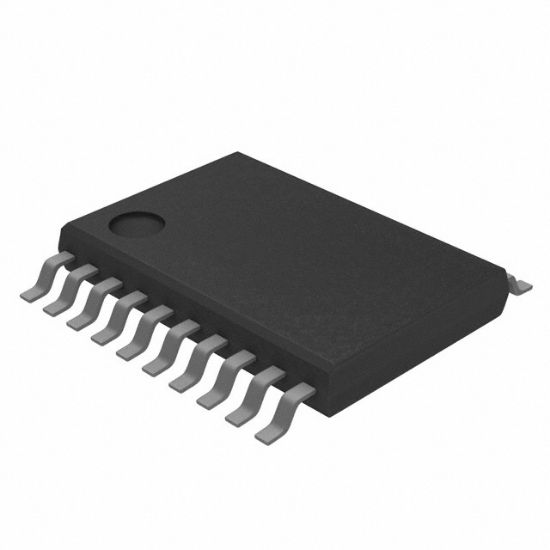

DAC7821IPW

IC DAC 12BIT A-OUT 20TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: DAC7821IPW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DAC7821IPW Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
DAC7821	DAC7821IPW	TI	20	0	12-bit, Parallel Input, Multiplying DAC

Operating Temperature	-40°C ~ 125°C
Data Interface	Parallel
Differential Output	Yes
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	20-TSSOP
Number of Bits	12
Package	Tube
Architecture	R-2R
Number of D/A Converters	1
Voltage - Supply, Analog	2.7V ~ 5.5V
Settling Time	200ns
RoHS	RoHS
Voltage - Supply, Digital	2.7V ~ 5.5V
Output Type	Current - Unbuffered
