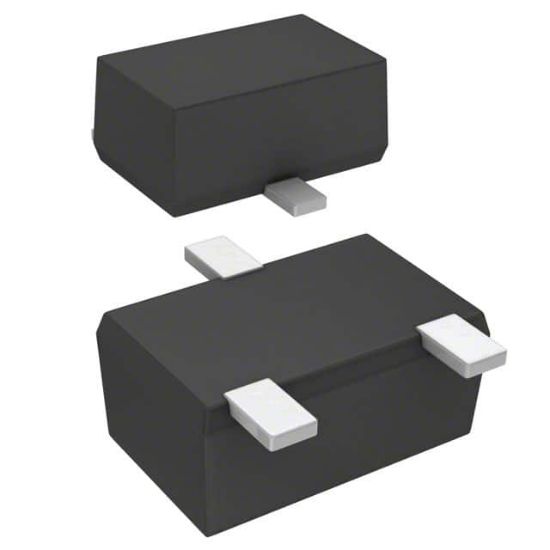

DA3J101K0L

DIODE GEN PURP 80V 100MA SMINI3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: DA3J101K0L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

DA3J101K0L Description

Capacitance @ Vr, F	1.2pF @ 0V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	SMini3-F2-B
Diode Type	Standard
Operating Temperature - Junction	150°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 100 mA
Current - Reverse Leakage @ Vr	100 nA @ 80 V
Reverse Recovery Time (trr)	3 ns
Voltage - DC Reverse (Vr) (Max)	80 V
Current - Average Rectified (Io)	100mA (DC)
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
