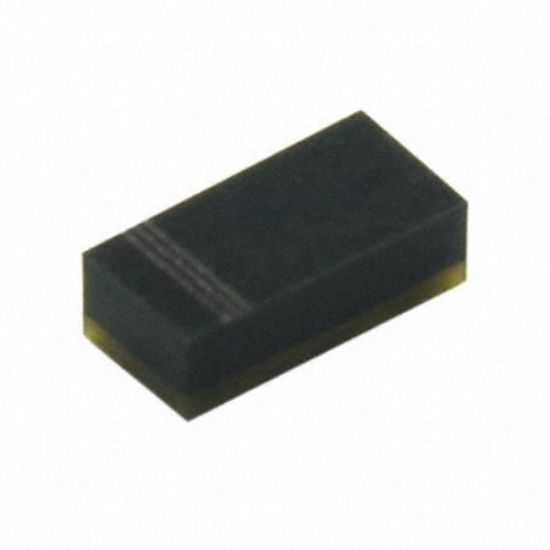

CZRF52C4V7

DIODE ZENER 4.7V 200MW 1005

1 review(s) | Add your review

Availability: In stock

Manufacturer: Comchip Technology

SKU: CZRF52C4V7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CZRF52C4V7 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Z9	CZRF52C4V7	COMCHIP	1005	2	4.47..4.94V, Izt=5mA, Zzt=78Ω, 200mW

Impedance (Max) (Zzt)	78 Ohms
Power - Max	200 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-55°C ~ 125°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	5 μA @ 2 V
Mounting Type	Surface Mount
Supplier Device Package	1005/SOD-323F
Package	Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)	4.7 V
Tolerance	±5%
