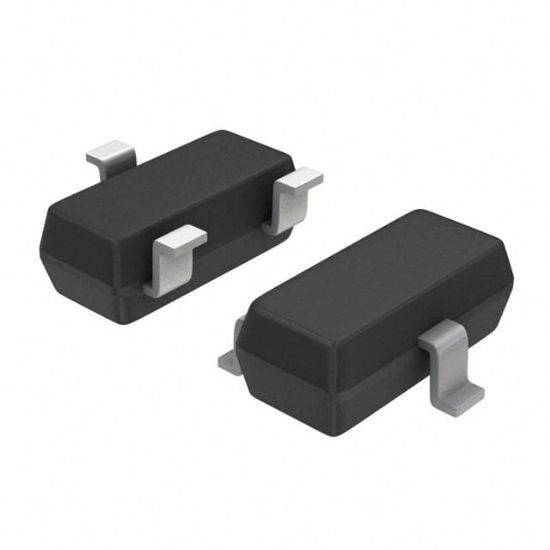

CPH3116-TL-E

TRANS PNP 50V 1A 3CPH

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: CPH3116-TL-E

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CPH3116-TL-E Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
AR	CPH3116-TL-E		TSOT-23	0	Bip Transistor -50V -1A VCE(sat);-430mV max. PNP Single

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	430mV @ 10mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1 A
Supplier Device Package	3-CPH
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	900 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V
Frequency - Transition	420MHz
RoHS	RoHS
Transistor Type	PNP
