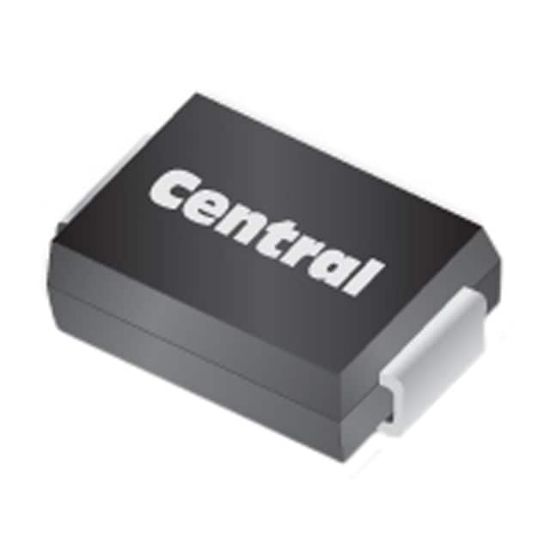

CMSSH-3C BK PBFREE

DIODE SCHOTTKY 30V 100MA SMC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Central Semiconductor Corp

SKU: CMSSH-3C BK PBFREE

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CMSSH-3C BK PBFREE Description

Current - Average Rectified (Io) (per Diode)	100mA (DC)
Mounting Type	Surface Mount
Supplier Device Package	SMC
Diode Type	Schottky
Operating Temperature - Junction	-65°C ~ 150°C
Package	Bulk
Voltage - Forward (Vf) (Max) @ If	1 V @ 100 mA
Current - Reverse Leakage @ Vr	500 nA @ 25 V
Reverse Recovery Time (trr)	5 ns
Voltage - DC Reverse (Vr) (Max)	30 V
Diode Configuration	1 Pair Common Cathode
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
