CMSD2005S BK PBFREE

DIODE ARRAY GP 300V 225MA SOT323

1 review(s) | Add your review

Availability: In stock

Manufacturer: Central Semiconductor Corp

SKU: CMSD2005S BK PBFREE

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CMSD2005S BK PBFREE Description

Current - Average Rectified (Io) (per Diode)	225mA (DC)
Mounting Type	Surface Mount

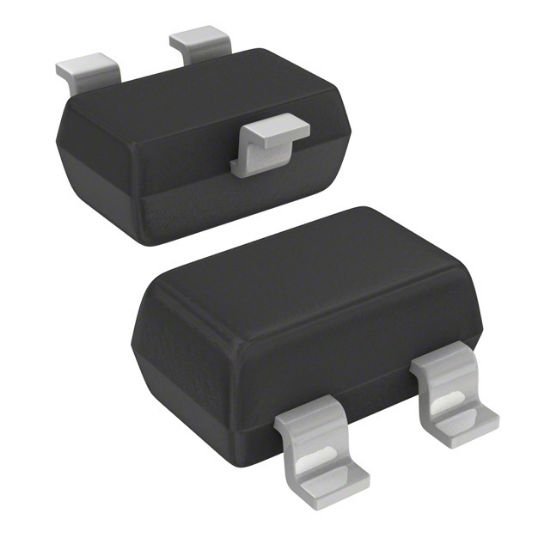

Supplier Device Package	SOT-323
Diode Type	Standard
Operating Temperature - Junction	-65°C ~ 150°C
Package	Bulk
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 200 mA
Current - Reverse Leakage @ Vr	100 nA @ 280 V
Reverse Recovery Time (trr)	50 ns
Voltage - DC Reverse (Vr) (Max)	300 V
Diode Configuration	1 Pair Series Connection
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
