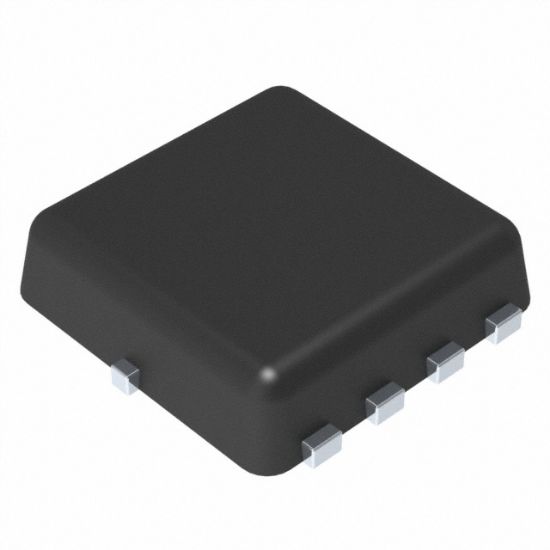

CMS06N10V8-HF

MOSFET N-CH 100V 6.8A 8PDFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Comchip Technology

SKU: CMS06N10V8-HF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CMS06N10V8-HF Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	6.8A (Tc)
Rds On (Max) @ Id, Vgs	105mOhm @ 6A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	1.7W (Ta), 10.4W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	26.2 nC @ 10 V
Supplier Device Package	8-PDFN (SPR-PAK ) (3.3x3.3)
Input Capacitance (Ciss) (Max) @ Vds	1535 pF @ 15 V
RoHS	RoHS
