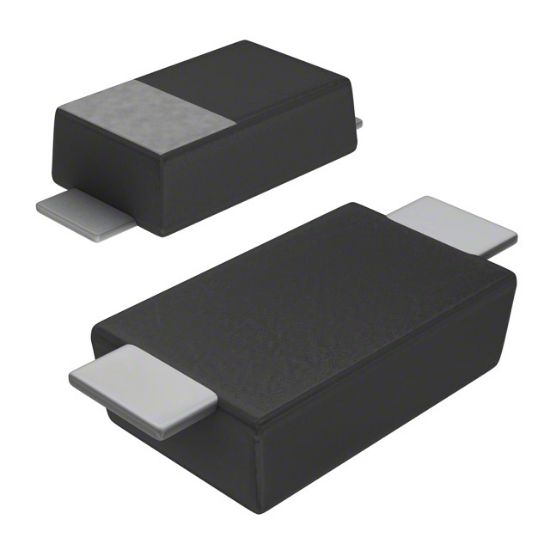

CMMSH1-40L

DIODE SCHOTTKY 40V 1A SOD123F

1 review(s) | Add your review

Availability: In stock

Manufacturer: Central Semiconductor Corp

SKU: CMMSH1-40L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CMMSH1-40L Description

Capacitance @ Vr, F	70pF @ 10V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	SOD-123F
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 125°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	450 mV @ 1 A
Current - Reverse Leakage @ Vr	500 μA @ 40 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	1A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
