CM1223-04SO

TVS DIODE 3.3VWM 8.8VC SOT23-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: CM1223-04SO

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CM1223-04SO Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D33x	CM1223-04SO		SOT-23-6	0	2-, 4- and 8-Channel Low Capacitance ESD Protection Arrays with Backdrive Protection

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - Reverse Standoff (Typ)	3.3V
Power - Peak Pulse	-
Voltage - Clamping (Max) @ Ipp	8.8V (Typ)
Mounting Type	Surface Mount

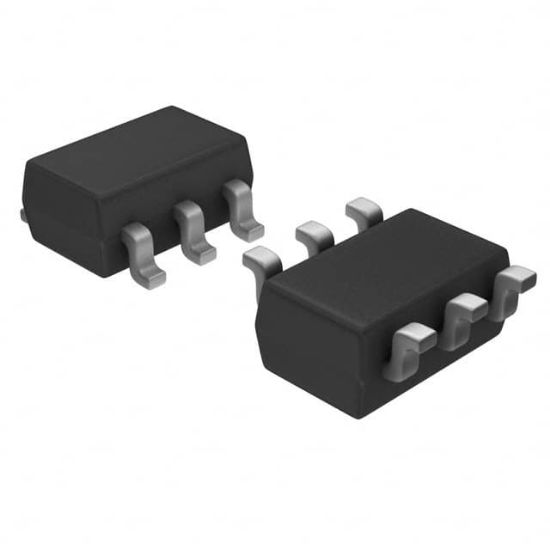

Supplier Device Package	SOT-23-6
Capacitance @ Frequency	-
Voltage - Breakdown (Min)	6V
Current - Peak Pulse (10/1000μs)	1A (8/20μs)
Unidirectional Channels	4
Package	Tape & Reel (TR)
Power Line Protection	Yes
Type	Steering (Rail to Rail)
Bidirectional Channels	-
Applications	General Purpose
RoHS	RoHS
