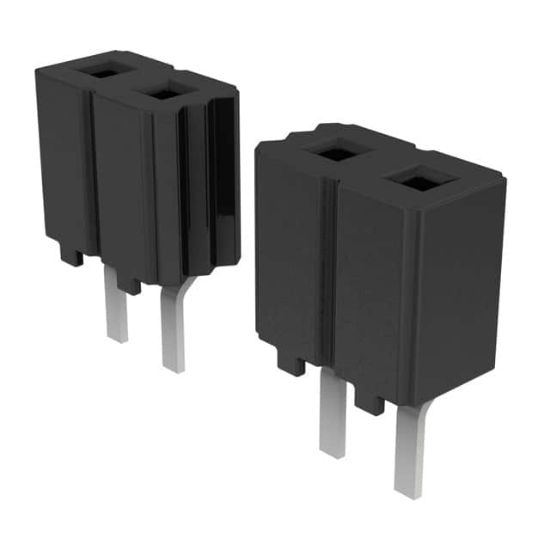

CES-150-01-S-S

CONN RCPT 50POS 0.1 GOLD PCB

1 review(s) | Add your review

Availability: In stock

Manufacturer: Samtec Inc.

SKU: CES-150-01-S-S

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CES-150-01-S-S Description

Operating Temperature	-55°C ~ 125°C
Contact Finish - Mating	Gold
Ingress Protection	-
Connector Type	Receptacle
Contact Finish - Post	Tin
Row Spacing - Mating	-
Mounting Type	Through Hole
Number of Positions Loaded	All
Contact Length - Post	0.128\" (3.25mm)
Voltage Rating	-
Number of Rows	1
Material Flammability Rating	UL94 V-0
Pitch - Mating	0.100\" (2.54mm)
Insulation Height	0.200\" (5.08mm)
Package	Tube
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Termination	Solder
Current Rating (Amps)	-
Mated Stacking Heights	-
Fastening Type	Push-Pull
Insulation Color	Black
Contact Type	Female Socket
Style	Board to Board
Features	-
Number of Positions	50
RoHS	RoHS
