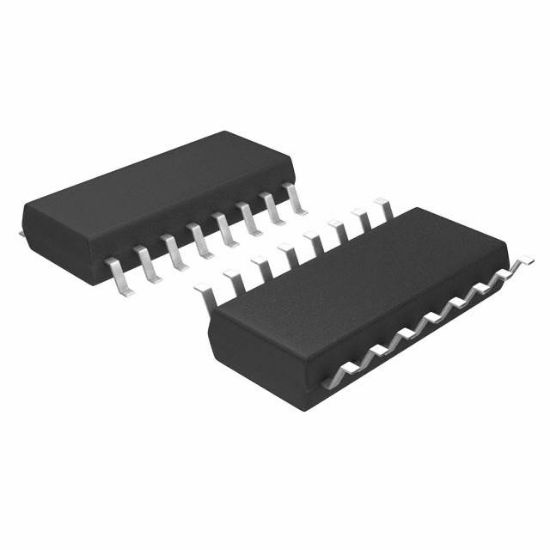

CD4502BNSR

IC BUFFER INVERT 18V 16SO

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: CD4502BNSR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CD4502BNSR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CD4502B	CD4502BNSR	TI	16	0	CMOS Strobed Hex Inverter/Buffer with 3-State Outputs

Output Type	Push-Pull
Operating Temperature	-55°C ~ 125°C (TA)
Current - Output High, Low	3.4mA, 20.4mA
RoHS	RoHS
Logic Type	Buffer, Inverting
Voltage - Supply	3V ~ 18V
Number of Elements	1
Supplier Device Package	16-SO
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Input Type	-
Number of Bits per Element	6
Mounting Type	Surface Mount
