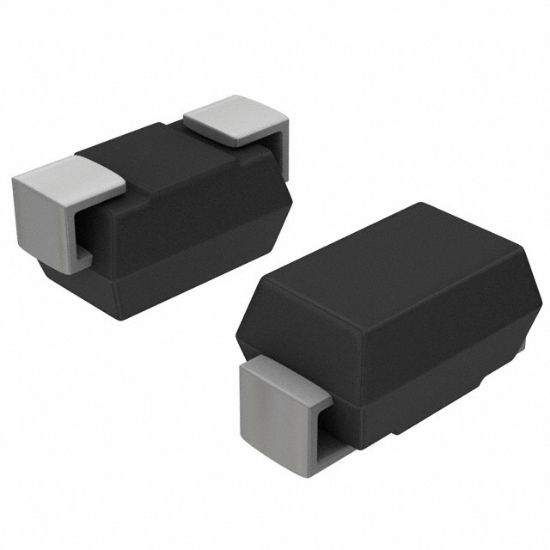

CD214A-F1600

DIODE GEN PURP 600V 1A DO214AC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Bourns Inc.

SKU: CD214A-F1600

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

CD214A-F1600 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F1J	CD214A-F1600	Brn	DO-214AC/SMA	2	Rect, Fast, 600V, 1A, Vf<1.7V(1A)

Capacitance @ Vr, F	10pF @ 4V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	DO-214AC (SMA)
Diode Type	Standard
Operating Temperature - Junction	-55°C ~ 150°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	1.7 V @ 1 A
Current - Reverse Leakage @ Vr	5 μA @ 600 V
Reverse Recovery Time (trr)	35 ns
Voltage - DC Reverse (Vr) (Max)	600 V
Current - Average Rectified (Io)	1A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
