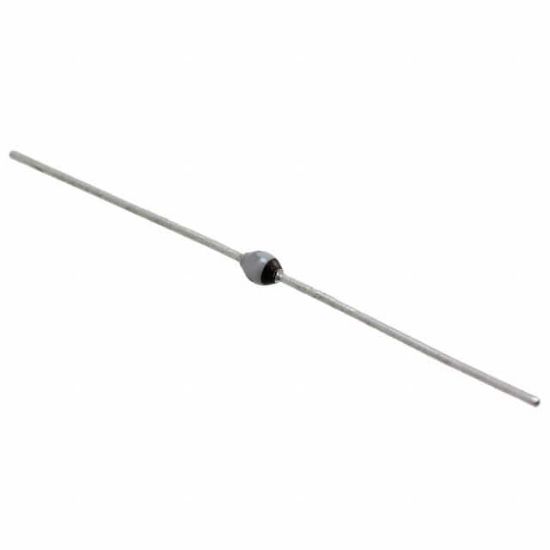

BY269TR

DIODE AVALANCH 1.6KV 800MA SOD57

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay General Semiconductor - Diodes Division

SKU: BY269TR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BY269TR Description

Capacitance @ Vr, F	-
Mounting Type	Through Hole
Supplier Device Package	SOD-57
Diode Type	Avalanche
Operating Temperature - Junction	-55°C ~ 175°C
Package	Tape & Reel (TR),Cut Tape (CT)
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 400 mA
Current - Reverse Leakage @ Vr	2 μA @ 1600 V
Reverse Recovery Time (trr)	400 ns
Voltage - DC Reverse (Vr) (Max)	1600 V
Current - Average Rectified (Io)	800mA
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
