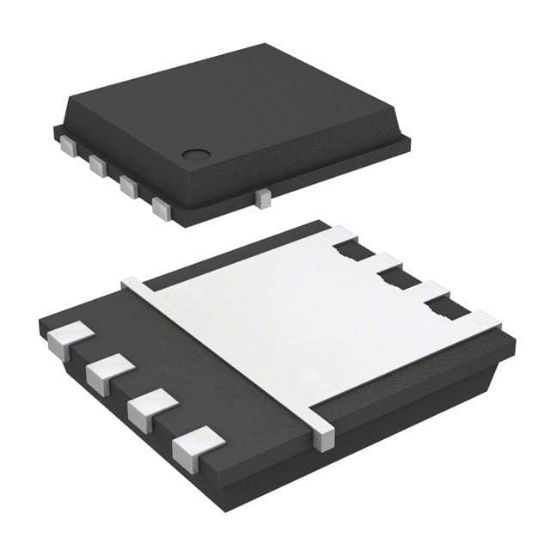

BSZ42DN25NS3GATMA1

MOSFET N-CH 250V 5A TSDSON-8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSZ42DN25NS3GATMA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSZ42DN25NS3GATMA1 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Rds On (Max) @ Id, Vgs	425mOhm @ 2.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	33.8W (Tc)
Drain to Source Voltage (Vdss)	250 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 13μA
Gate Charge (Qg) (Max) @ Vgs	5.5 nC @ 10 V
Supplier Device Package	PG-TSDSON-8-2
Input Capacitance (Ciss) (Max) @ Vds	430 pF @ 100 V
RoHS	RoHS
