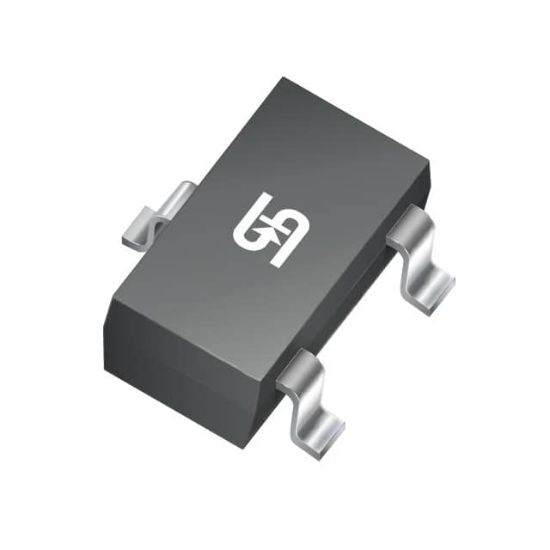

BSS84W

-60, -0.14, SINGLE P-CHANNEL

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: BSS84W

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSS84W Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
K84	BSS84W		SOT-323	3	P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
84W	BSS84W	Pjt	SOT-323	3	V-MOS, LogL, 50V, 130mA, 200mW, <10(130mA), 3/7ns

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	140mA (Ta)
Rds On (Max) @ Id, Vgs	8Ohm @ 140mA, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	298mW (Ta)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	1.9 nC @ 10 V
Supplier Device Package	SOT-323
Input Capacitance (Ciss) (Max) @ Vds	37 pF @ 30 V
RoHS	RoHS
